创建Cesium Viewer

所属分类: cesium   2019-03-04 10:57:06  编辑:admin  浏览次数 1083 次

永远记住一点即可:在Cesium上开发的所以东西都是地图上的一个悬浮框,可以关联地图可以不关联地图,关联地图就相当于一个控件,不关联地图的相当于一个组件,原理就是这个、、、个人分析的

任何Cesium应用程序的基础都是Viewer。Viewer是一个带有多种功能的可交互的三位数字地球的容器(盒子)。创建一个Viewer和HTML中的一个id为"cesiumContainer"的div绑定即可。

var viewer = new Cesium.Viewer('cesiumContainer');

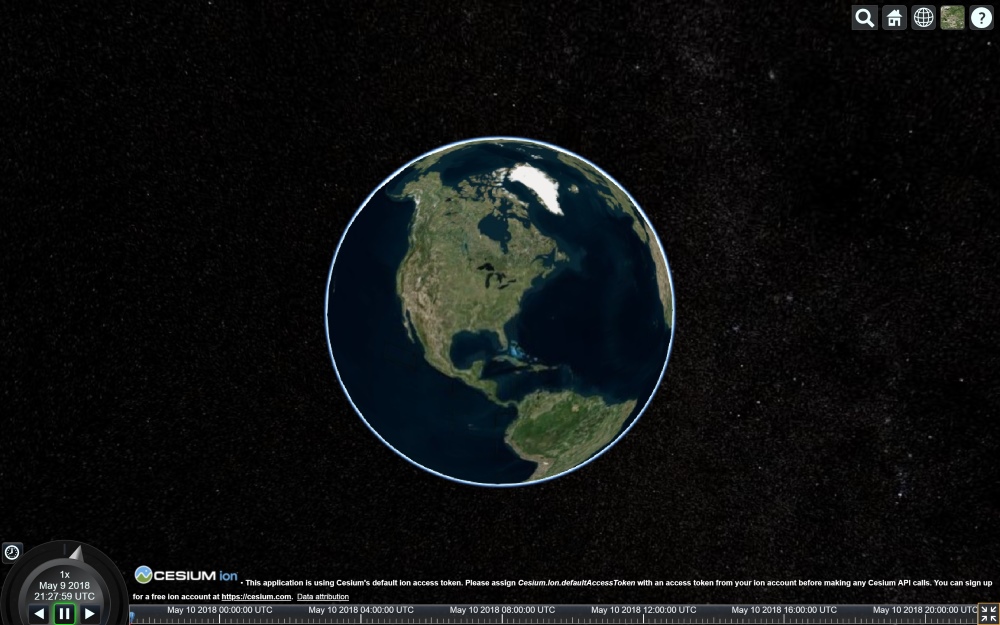

使用以上代码之后,能看到下图所示的基本的数字地球:

默认地,场景支持鼠标(电脑)和手指(移动设备)交互。控制相机漫游数字地球可以通过以下方式:

  • Left click and drag - Pans the camera over the surface of the globe.

  • Right click and drag - Zooms the camera in and out.

  • Middle wheel scrolling - Also zooms the camera in and out.

  • Middle click and drag - Rotates the camera around the point on the surface of the globe. 翻译

  • 按住鼠标左键拖拽 - 让相机在数字地球平面平移。

  • 按住鼠标右键拖拽 - 放缩相机。

  • 鼠标滚轮滑动 - 放缩相机。

  • 按住鼠标中键拖拽 - 在当前地球的屏幕中间点,旋转相机。

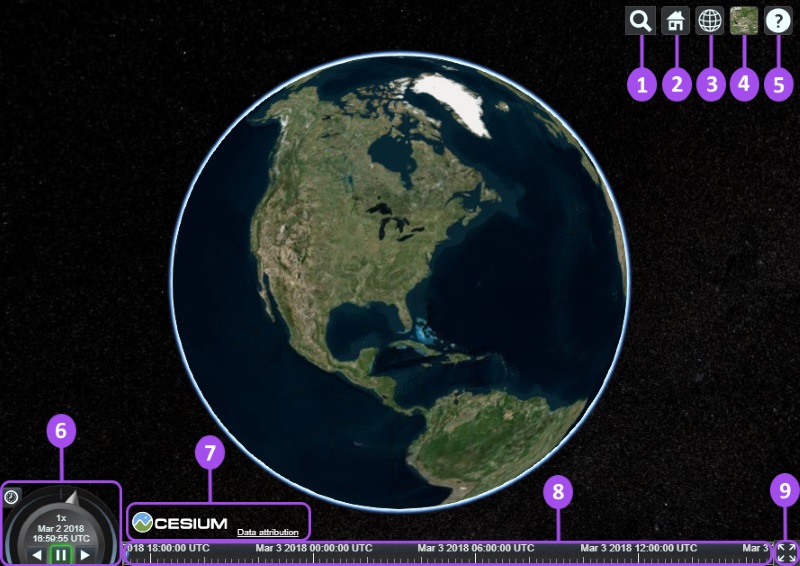

默认的Viewer自带了一些有用的组件:

  1. Geocoder : A location search tool that flies the camera to queried location. Uses Bing Maps data by default.

  2. HomeButton : Flies the viewer back to a default view.

  3. SceneModePicker : Switches between 3D, 2D and Columbus View (CV) modes.

  4. BaseLayerPicker : Chooses the imagery and terrain to display on the globe.

  5. NavigationHelpButton : Displays the default camera controls.

  6. Animation : Controls the play speed for view animation.

  7. CreditsDisplay : Displays data attributions. Almost always required!

  8. Timeline : Indicates current time and allows users to jump to a specific time using the scrubber.

  9. FullscreenButton : Makes the Viewer fullscreen. 翻译

  10. Geocoder : 一种地理位置搜索工具,用于显示相机访问的地理位置。默认使用微软的Bing地图。

  11. HomeButton : 首页位置,点击之后将视图跳转到默认视角。

  12. SceneModePicker : 切换2D、3D 和 Columbus View (CV) 模式。

  13. BaseLayerPicker : 选择三维数字地球的底图(imagery and terrain)。

  14. NavigationHelpButton : 帮助提示,如何操作数字地球。

  15. Animation :控制视窗动画的播放速度。

  16. CreditsDisplay : 展示商标版权和数据源。

  17. Timeline : 展示当前时间和允许用户在进度条上拖动到任何一个指定的时间。

  18. FullscreenButton : 视察全屏按钮。

  19. infoBox: false,  //是否显示点击要素之后显示的信息

我们可以通过代码来配置视窗组件,在我们初始化视窗的时候,通过配置参数添加/移除相关组件。 以下代码是通过参数配置得到的viewer,该Viewer不带selection indicators, base layer picker or scene mode picker等组件。

var viewer = new Cesium.Viewer('cesiumContainer', {
    scene3DOnly: true,
    selectionIndicator: false,
    baseLayerPicker: false
    });

var viewer = new Cesium.Viewer('cesiumContainer',{

    geocoder:false,

    homeButton:false,

    sceneModePicker:false,

    baseLayerPicker:false,

    navigationHelpButton:false,

    animation:false,

    timeline:false,

    fullscreenButton:false,

    vrButton:false,

    // skyBox : new Cesium.SkyBox({

    //     sources : {

    //     positiveX : 'stars/TychoSkymapII.t3_08192x04096_80_px.jpg',

    //     negativeX : 'stars/TychoSkymapII.t3_08192x04096_80_mx.jpg',

    //     positiveY : 'stars/TychoSkymapII.t3_08192x04096_80_py.jpg',

    //     negativeY : 'stars/TychoSkymapII.t3_08192x04096_80_my.jpg',

    //     positiveZ : 'stars/TychoSkymapII.t3_08192x04096_80_pz.jpg',

    //     negativeZ : 'stars/TychoSkymapII.t3_08192x04096_80_mz.jpg'

        //     }

        // })

    });

上面是js控制,下面是css控制

     /* 不占据空间,无法点击 */

      .cesium-viewer-toolbar,             /* 右上角按钮组 */

      .cesium-viewer-animationContainer,  /* 左下角动画控件 */

      .cesium-viewer-timelineContainer,   /* 时间线 */

      .cesium-viewer-bottom               /* logo信息 */

      {

        display: none;

      }

      .cesium-viewer-fullscreenContainer  /* 全屏按钮 */

      { position: absolute; top: -999em;  }
